Highlight cells that = 'No' across whole workbook

[thrnma]

Hello,

I have created an Excel in Alteryx. The table itself is fine and works, but I am now trying to set it up so that every time the word 'No' appears in the table, I want to highlight it. I figured out how to do it per column/field, but I cannot set it up for every field as the size of the table will change.

The image above shows the fields that are currently in my table. However, next month, the table may have more or less iterations of the 4 variables (e.g. next month, there may be a 4_Comments, 4_Completion, 4_Reason and 4_Value).

I basically want the table tool to look at every cell in the workbook, as opposed to having to set it up to look at specific rows/columns.

I tried by looking at specific rows (as the rows will not change, just the number of columns), but I could only highlight full rows and could not specify to look at just 'No'

Please can someone help.

Thank you

[danilang]

Hi @BrianDumm

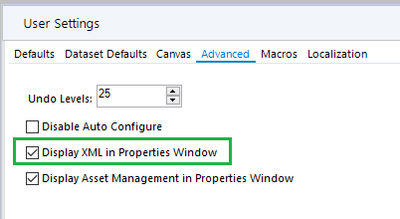

The key for background colour is BackColor=.  You can find all the various style configurations by setting up the rules in a table tool and then looking at the XML of the table tool.  Under the Advanced tab in User Settings check "Display XML in Properties Window"

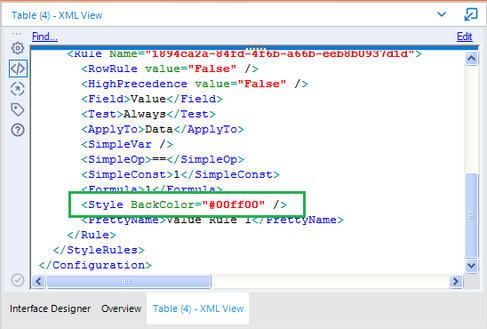

Then select the Table tool where you've set up the background color rule, click the </> icon on the left and look for the <Style ... /> line

Dan

[BrianDumm]

Awesome Tip.  Thanks again!

[Mond]

nvm

[KimLamNg]

Hi @danilang Thanks for sharing the macro. I was wondering if we can expand this to format an entire field based on the field description (metadata) instead of the value?
