First ever macro - need help building into my workflow please

Question

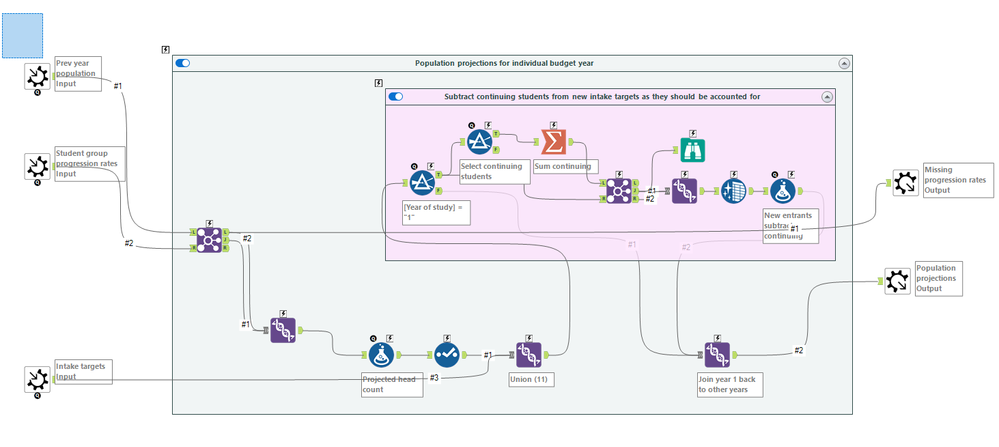

Hi, I'm having a go at my first macro, shown below. The macro runs successfully on its own but I'm having trouble incorporating it into my workflow.

I can't work out which input is which and apparently I've got a 'Control input' which I don't want.  How can I show the input and output numbers on the macro tool and remove the control input please?

MatthewO · Accepted Answer

@squelchie Alteryx supports several types of macros. It sounds like your macro may be currently set up as a Batch Macro, which requires a Control Parameter. You can change this in the Workflow Configuration by choosing Standard Macro. A standard macro processes data without iteration.

DataNath · Accepted Answer

Hey @squelchie, looks like @MatthewO has you covered on getting rid of the control parameter anchor. With regards to labelling the anchors, you just need to click on the Macro Inputs/Outputs and fill in where it says 'Anchor Abbreviation', like so:

In my main workflow you can now see I have my S and C inputs - you can use numbers as you mentioned (but the abbreviations can only be single characters):
