Field rename from field description (macro)

Hi all

We have data that always comes out of a system with code names as field names, with the real name sitting in the field description. Fairly easy to fix with field info & dynamic rename. Wanted to package this into a macro for everyone to use. Having an issue though that the names keep reverting to the original ones while one works. One then needs to continuously rerun the workflow to get the names 'live'. How do I force the macro to correctly carry the metadata?

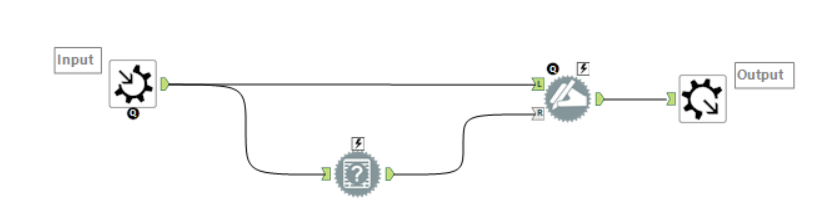

field description rename.PNG

Thanks!

ACS field rename.yxmc

Macros

Dynamic Processing

Accepted answers

Claje

Hi,

Inside your macro, when you open the Interface Designer (View->Interface Designer or Ctrl+Alt+D), under the Settings screen (wrench icon), there is a check box "Output fields change based on macro's configuration or data input". Try checking that box and save your macro and see if that helps. It worked for me in this case, although I have had some complex macros where it does not always solve this issue.

All comments

MarqueeCrew

Hi @kat,

Please try the macro with a few tweaks. I make sure that the description has a length to it and when it isn't present, I use the Name.

Cheers,

Mark

ACS field rename (MarqueeCrew).yxmc

kat

@MarqueeCrew, thanks.

I don't think I explained this very well. All my fields have a field description. This issue comes in that while building the workflow, the fieldnames revert back to the code name. I can place about one tool after the run until they break. I then need to run the workflow to update the field names to keep working. That's quite annoying...

It's not an issue when I use the tools outside of a macro though. So my thinking was that because the macro input doesn't have field descriptions they might get lost.
