Enable/Disable Tools execution based on Filter condition

Hi Friends

I need to write Alteryx Results in to DB Tables. Before writing, I need to check is there any data available in Staging table. If available write data into Archive Table and then write data to Staging. To handle this, I follow below steps.

Reading count of records from Staging Table (1 - data exists/0-no data).
Appending this value with actual data (simply)
Checking in Filter about data count.
Filter tool : If data exists, then in output File, I have Pre SQL statements to perform below and then write data into Staging table
- Insert into Archive table from Staging Table
- Truncate Archive Table
If there is no data in staging, then data will be directly inserted into Staging table

However, when I execute Query, both output files are executed, instead of one output flow.

I thought, enabling/disabling containers will sort out issue. But, I dont know how to pass filter values to Containers. Please suggest me best practice to implement this.

Flow Flow

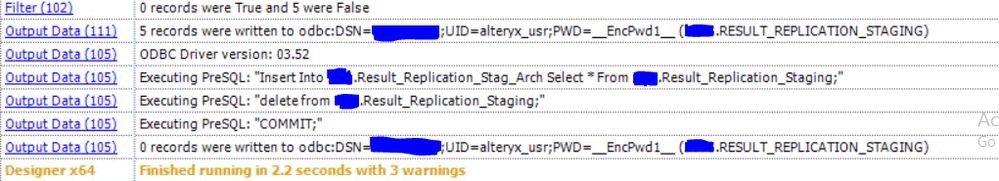

In the below flow Output Data (105) Should not be executed as Filter conditions fails there.

Thanks

Antony

Datasets

Developer Tools

Input

Output

Tips and Tricks

Custom Tools

Macros

Transformation

Dynamic Processing

In Database

Interface Tools

Database Connection

Iterative Macro

In-Database

Accepted answers

RolandSchubert

I've modified the version within the files, you should be able to open now.

EnableDisable.zip

All comments

RolandSchubert

Hi @Antony89anto ,

the Filter tool evaluates the condition, but unfortunately both results are executed. A possible solution could be to create a macro for the "write to file" part and use the Detour tool to decide, which part should be executed. I've attached a sample workflow writing to either F1.csv or F2.csv depending on the number of rows in an input table. What do you think?

Best,

Roland

EnableDisable.yxzp

Antony89anto

Hi Roland

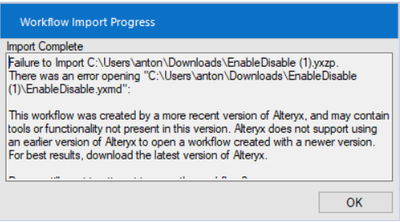

Thanks for your Support. I am not able to open this file. I am using version 2019.4.8 and seems like you r using higher versions. Is there anyway around?

Thanks

Antony
