Hello,
I am trying to combine information from same tab from multiple excel files. In my example, I need Alteryx to find "Analysis" tab in each excel file saved in a given directory and append information vertically. I am using directory tool and dynamic input tool. However, my output takes only one file from the directory. Why other file is not being picked up?
Here is my flow.
Thank you so much,
Anastasia
Solved! Go to Solution.
Hello @AnastasiaG ,
both files need to have the same amount of columns, named the same way and having the same data type, otherwise, those who do not share the same schema will be skipped. By the way in your case the first file has 30 columns and the second 40 and some columns don't have the same data type.
Regards
hi @AnastasiaG
the problem is the differences between columns
Please download this macro and connect it after your formula. It would read both files
I hope it helps
Thank you for your reply. How can you tell that they do not have the same schema? They both have the same column names and all columns end on AM.
Hi @randreag , I've built tools for this exact purpose.
I've attached the example workflow along with the tools.
The first tool pulls in the Sheet names, you then append those to the filename. Then the second tool dynamically loads in all files regardless of schema.
Hope this helps.
M.
Hello @AnastasiaG ,
With the field info tool and using a join tool with the "join by record position" check enabled you would be able to see the data type from each field as well as the names.
Regards
Thank you

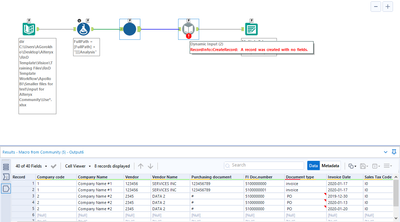

Macro worked and 2 files appeared, but at dynamic input step, I got error message that record was created with no fields.
Hi @AnastasiaG ,
I've attached the workflow and the macros that allow you to do this dynamically. Can you let me know why this doesn't work?
Thanks,
M.
Hi @mceleavey
I am trying to understand your solution, that is why it is taking some time for me to reply. Unfortunately, it did not work. When I imported, first I got error message that your Alteryx has higher version and some tools might not work:

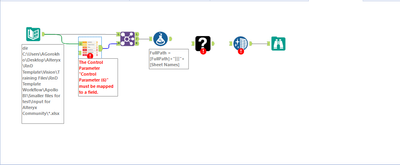

I clicked on yes and got this:
I assume that the first question mark relates to Import Multiple Schema files and the second one relates to Dynamic Multi File Macro. When i tried to update them with my directory and 2 excel files, nothing worked.
