Creating Multi-page PDF

[MistyClark05]

I am trying to create a multi-page pdf using multiple tables with unique headers. I want each table on it's own page. I cannot seem to get the layout and render tool to give me the correct results.

Attached show the tool flow/configurations.

Any help would be appreciated!

[afv2688]

Hello @MistyClark05 ,

Try this, use a formula tool for every sheet that is going into the pdf. Write on every sheet a different name (this names are afterwards going to be used for grouping, so would recommend to change to a union tool instead of the multiple join).

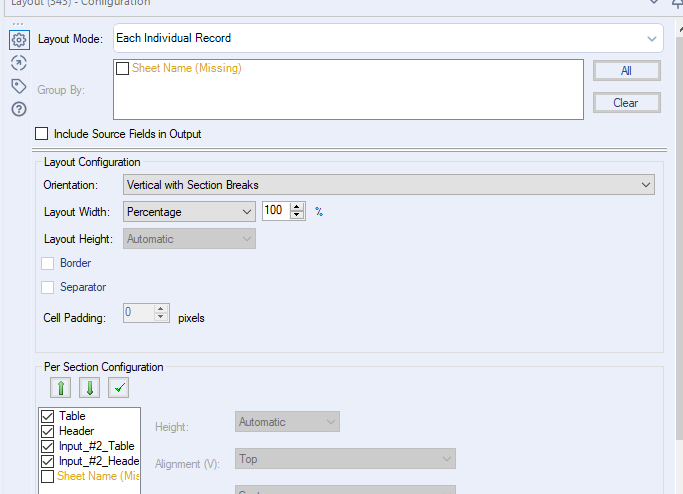

Group then on the layout by the column we just created with section breaks, use it also on the section name (on the bottom) and that should be all!

Regards

[messi007]

@MistyClark05,

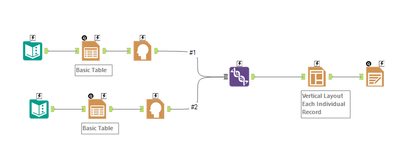

Below a sample example:

Attached the workflow,

Hope this helps!

Regards,

[MistyClark05]

@afv2688 Because there is a table and separate header, this is resulting in the table getting duplicated in the output results. Do I need a layout tool to combine them first?

[MistyClark05]

@messi007  Each table has a different header. Is there a way to make this solution apply in that situation?

[messi007 · Accepted solution]

@MistyClark05,

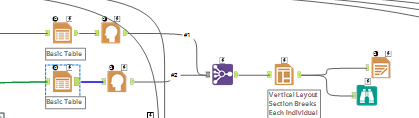

Please see below:

Attached the workflow,

Hope this helps!

Regards

[afv2688]

Hello @MistyClark05 ,

This example has set up to work with different headers. Hope it helps 🙂

Regards
