Create a histogram with custom bin size to build a reporting by type

[a_chhay]

Hi all,

For the first part of my problem, I'm trying to gather my field "Delay"  with a bin size = 5.0 regardless of the field "TYPE" and do the sum of the count for each bin .

For example:

Interval_Delay	Count
[0;5[	188
[5;10[	199
…	…
[295; 300[	11

For the second part of my problem, i'm trying to create a histogram in a reporting with a drilldown by type

Is there any template to create that kind of reporting.

 Thanks,

A_chhay

[danilang · Accepted solution]

Hi @a_chhay

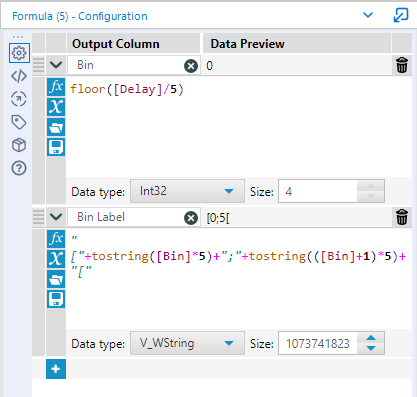

Here you go.  I used a formula tool the generate the bins and bin labels

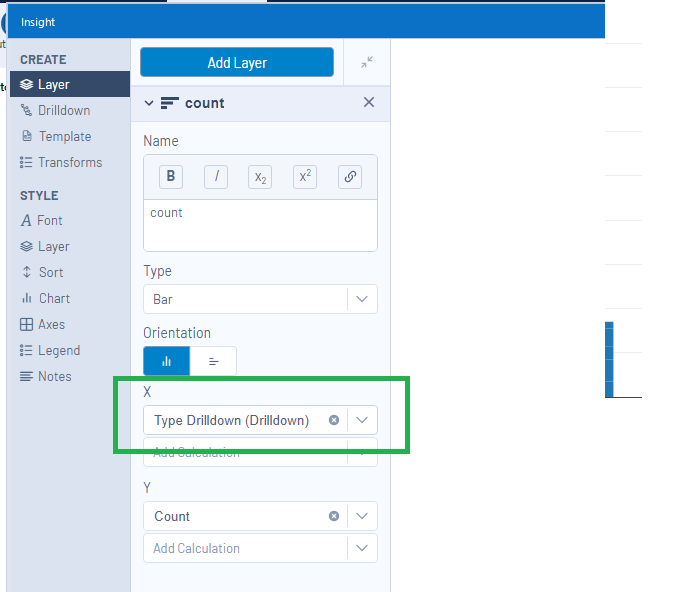

The trick in the Insight tool is to create the drill down first and then use the drill down as an axis

Full graph

Drill down by type

Dan

[a_chhay]

hi @danilang,

Thanks for your help. the creation of bins and bins label have been useful for my problematic.

For the other point, i've found another way to filter my data with a specific filter.

have a good day.

André
