Change Excel sheet name in file generated from Render tool

mb1824

Hi,

The attached workflow does what I want except for 1 thing:

The Excel file has sheet names "sheet1" & "sheet2".

Is there a way to change this (without opening the file and manually changing them)

Ideally I want the sheet names to be the same as the field names fed into the Layout tool.

Alteryx_Render sheet names.JPG

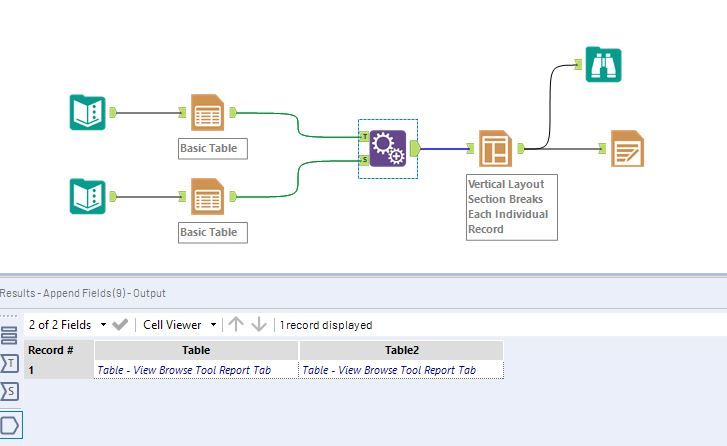

Alteryx_Layout input_field names.JPG

Render tool_Excel sheet names.yxzp

Reporting

Accepted answers

DavidP

I modified your workflow to define the Sheet Names in the output file. See attached, specifically the configuration of the layout tool.

Render tool with sheet names.png

Render Tool with multiple Excel tabs.yxmd

All comments

DavidP

I modified your workflow to define the Sheet Names in the output file. See attached, specifically the configuration of the layout tool.

Render tool with sheet names.png

Render Tool with multiple Excel tabs.yxmd

mb1824

@DavidPthanks very much for your help!

vijaylnyadav

Thanks @DavidP this workflow helped me alot.

FreeRangeDingo

@DavidP I'm trying to use this solution and the columns come out huge. I've tried changing the layout width several different ways but it never works. I had it set up as Horizontal and it worked but I need multiple named sheets. Any suggestions?

Computernerd

Thanks! That was just what I needed.
