Challenge for experts - web input applications

Hello,

Someone in my company built special macro workflow which is not to difficult to input data about Client ID from the list box, and two information about date (start and end date).

Below is part of this workflow:

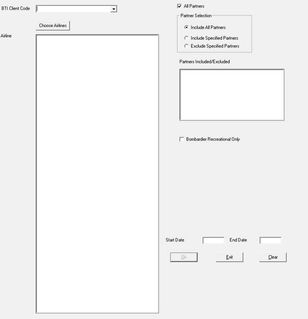

I need prepare in Alteryx, special Interface for user which look like similar to this one:

and in the best way this new solution in Alteryx should be create on web (is it possible to built in Alteryx web interface ??).

Now in Alteryx I can use this tool to input data, but this is solution in Alteryx but I need something in web, which will be connected with my workflow in Alteryx.

Could you give me advice how can i start build this??

Input

Dynamic Processing

Interface Tools

Accepted answers

KaneG

There are a couple of aspects here.

You won't be able to put the controls next to each other on the Alteryx interface.
Nesting of the items will make it more visually appealing.
The organisation is done in the Interface Designer.
For the Radio Buttons, You can put three Radio Buttons on the canvas and then add a group box in the interface designer. Use the arrows on the side to move the Radio Buttons into the Group Box.
The buttons are standard in Alteryx, you can't change those.

awojciechowski

Thanks @KaneG

I found yesterday this "Interface Designer" and I prepared better interface in Alteryx.

Good to know that "You won't be able to put the controls next to each other on the Alteryx interface."

Very important to design our interface is shortcut CTRL + ALT + D

Now my interface consist of 3 Tabs and include all needed options.

All comments

MarqueeCrew

@awojciechowski,

Please review this post (A video with pptx support): https://community.alteryx.com/t5/Partner-Resources/Introduction-to-the-Alteryx-API/ta-p/56734

Essentially, you can call the application on the gallery via an API. You can have whatever GUI you desire, what you pass are the parameters necessary to queue and execute your gallery application and return the results.

Cheers,
Mark

awojciechowski

Hi @MarqueeCrew

Thanks for your fast answer but unfortunately i don't have access.

I see information:

"Access Denied

You do not have sufficient privileges for this resource or its parent to perform this action.

Click your browser's Back button to continue."
