Chained Apps List Box works using external source in second app but not in the third app

I have three chained apps, the first two run perfectly with one another and include the use of a list box. The third app is made up almost identically to the second app and also includes a list box, but does not display list box results when run with the wizard following the second app's completion. Both list boxes are setup using external source name and value paths.

I am not sure why the method works well for the first two apps, but not the third.

Any help would be greatly appreciated.

I setup my list boxes for the chained app regarding what the Alteryx community had previously stated about NAME and VALUE and using an external source.

Here are screenshots of my workflows:

app 1 chained app question.png

app 1 listbox output.png app 1 mapping.png app 2 chained app question.png app 2 listbox configu.png app 2 mapping.png app 3 chained app question.png app 3 listbox config.png app 3 mapping.png app 3 run manually.png config for app 3 listbox.png

Thanks,

James

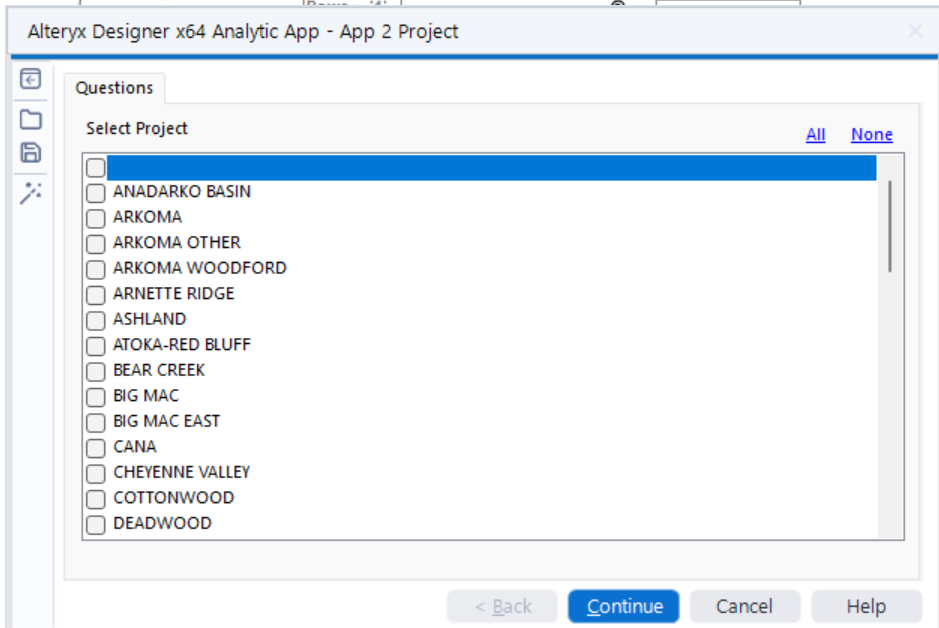

app 2 chained app question.png

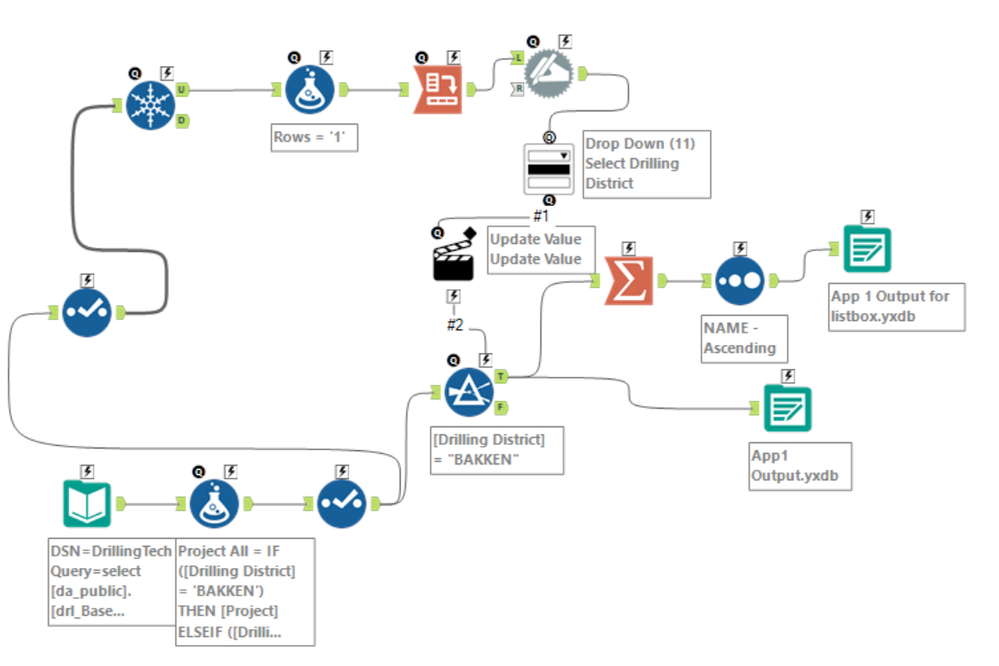

app 1 mapping.png

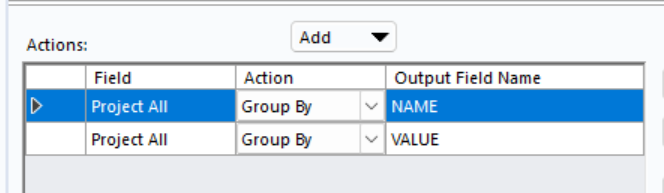

app 1 listbox output.png

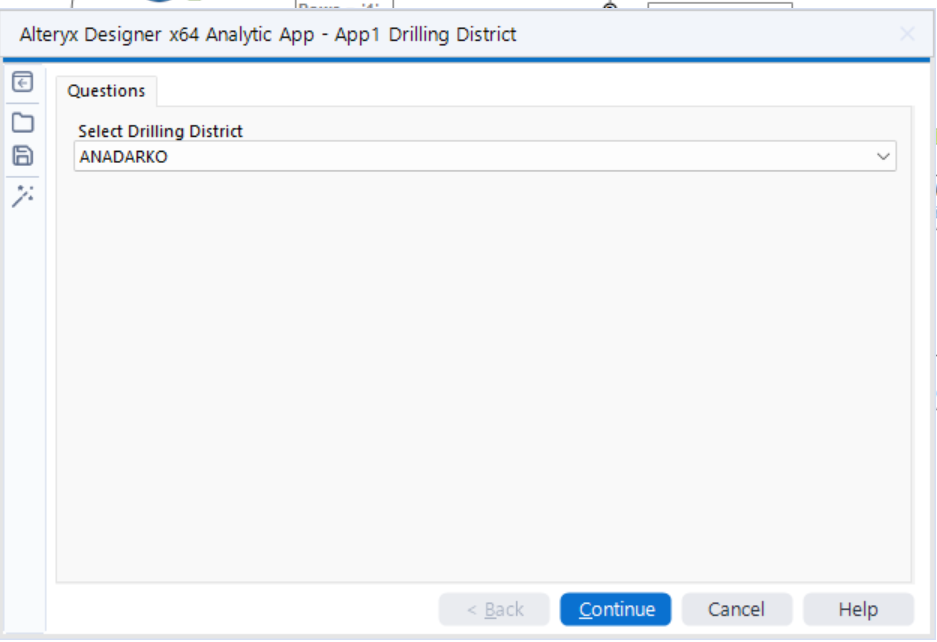

app 1 chained app question.png

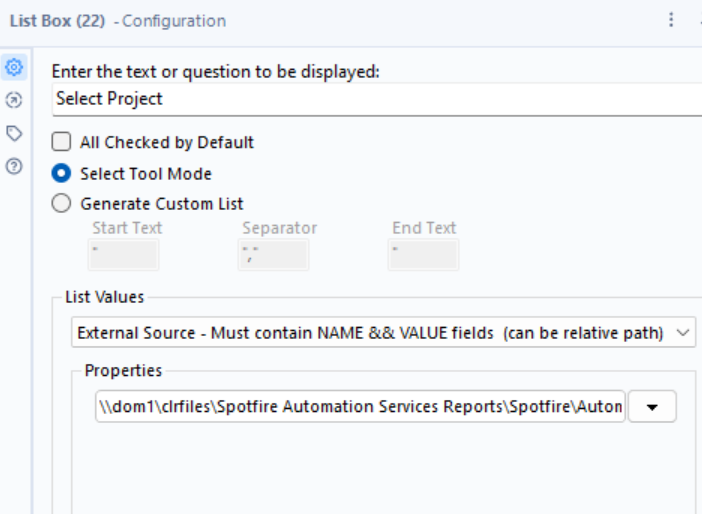

app 2 listbox configu.png

Bug

Apps

Chained App

Accepted answers

apathetichell

in the action tool - click on expression. make sure the replace string value didn't change. rerun. You have it set up to update the filter mode. that is not what you want.

All comments

livingja

more screenshots

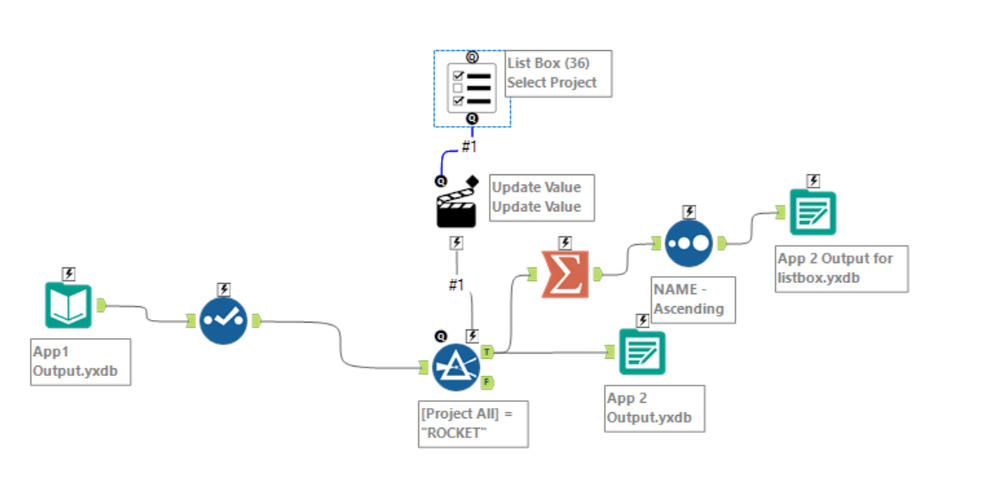

app 2 mapping.png

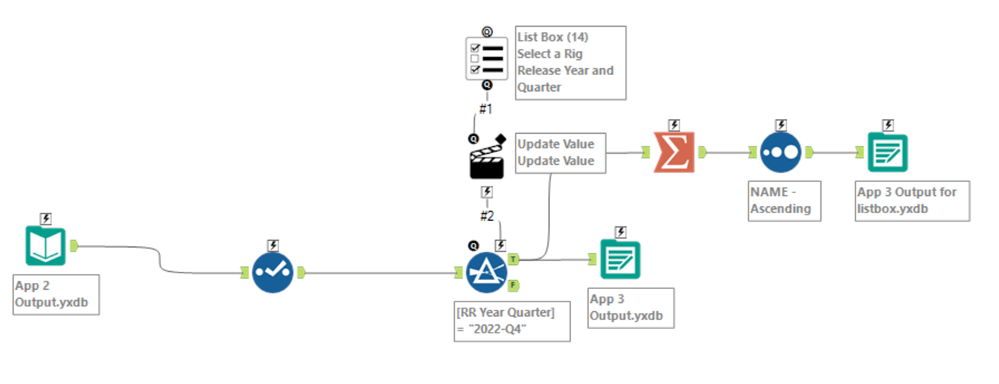

app 3 mapping.png

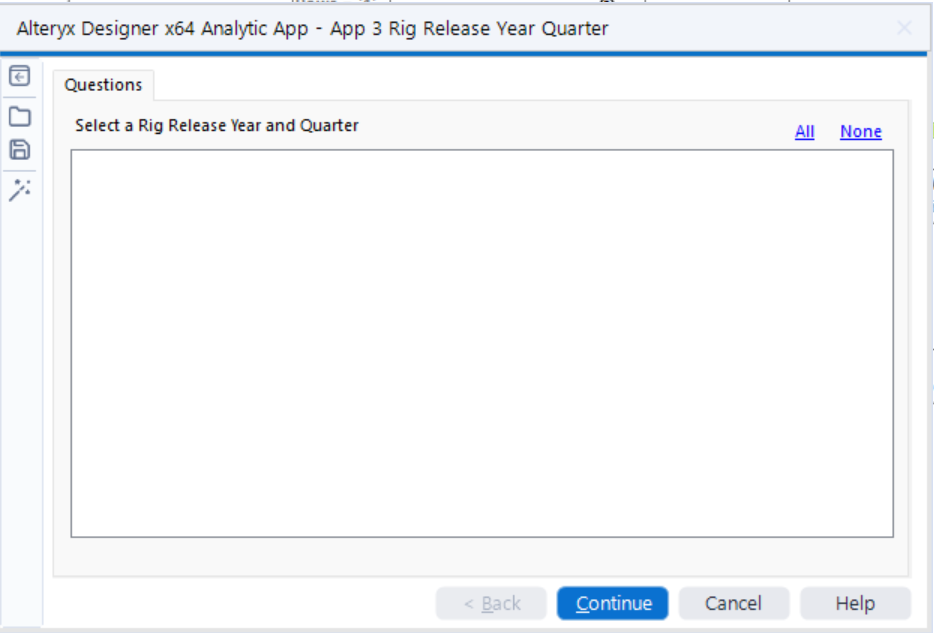

app 3 chained app question.png

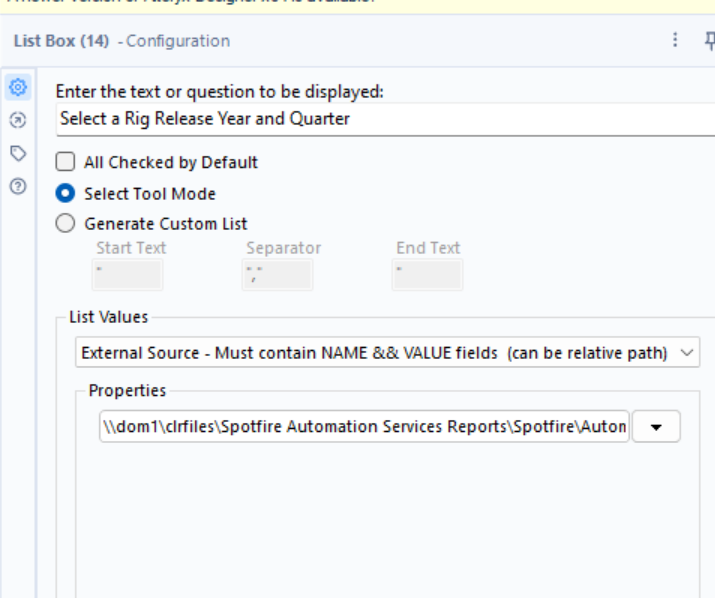

app 3 listbox config.png

app 3 run manually.png

livingja

more screenshots

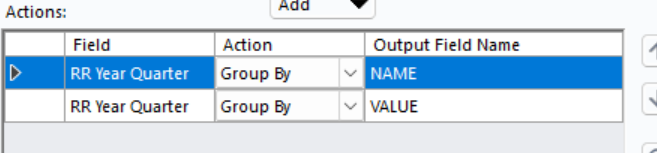

config for app 3 listbox.png

apathetichell

first place I'd look - you are publishing the output of the second app to the wrong location.

second place I'd look - are the files created by the second app actually there and are then in the correct NAME VALUE format

hypothesis:

App 1 - you feed a drop down into a filter.

App 2 you feed a listbox into a filter.

Drop down = 1 value.

List Box = an array of values. potentially more than 1 - but nontheless an array of values.

your filter tool in app 2 is not creating anything because you have it configured wrong in your action tool. App3 is working correclty - your listbox/actiontool/filtertool is wrong.

if you do want a list - you must configure it in custom list mode - not select tool mode.

livingja

It isn't being published to the wrong location. They do have the correct NAME VALUE, when run individually/manually everything populates perfectly, just not as a chained app. The first two apps work perfectly while chained together as well however. The problem seems to lie with the list box, but I'm wondering how it worked correctly with app 2 but not with app 3. The setup of app 2 and app 3 are almost identical. I have not tried custom list mode however, I didn't see anyone else say that was required and it wasn't needed for chaining apps 1 and 2 together successfully. Thank you for the response Altair, I wonder if you're familiar with the Assassin's Creed games.

apathetichell

You need to switch out of listbox. when you run in designer this works because your action tool is not modifying your filter. When you run as an app you are feeding junk to your filter and are not creating any files. if you don't create any files in app 2 - app 3 will not run.

Sorry - It's a community rank/star. In the old days I played Master of Magic - and it was the Alkari homeworld - but that's dating me as "old."

livingja

This is where I am confused because app 1 is filtering and creating files in app 2, both an output with everything, and an output with just the NAME and VALUE for the listbox and app 2 is setup to filter and do the same for app 3. Also I need to be able to select multiple different variables in my selection which is why I chose listbox, is there an alternative?

apathetichell

the correct configuration for filter tool is [field[ IN("value1") - action tool replaces specific string "value1" - WITH QUOTES

list box configured in list mode with " "," "

if this doesn't work - your action config is wrong - you will need to post screem grabs.

livingja

I made all of these changes and it did not fix my issue, the first two apps still work perfectly, the third one still does not display anything for its listbox question.

Here is a screenshot of the listbox config from app 2

Here is the action tool setup from app 2:

app 2 action tool config.png

Here is the filter setup for app 2:

app 2 filter setup.png

Here is app 2's workflow:

app 2 workflow.png

The setup for app 3 is exactly the same but with a different filter, once again app 2's list box is working perfectly, app 3's is not populating at all.

app 3 workflow.png

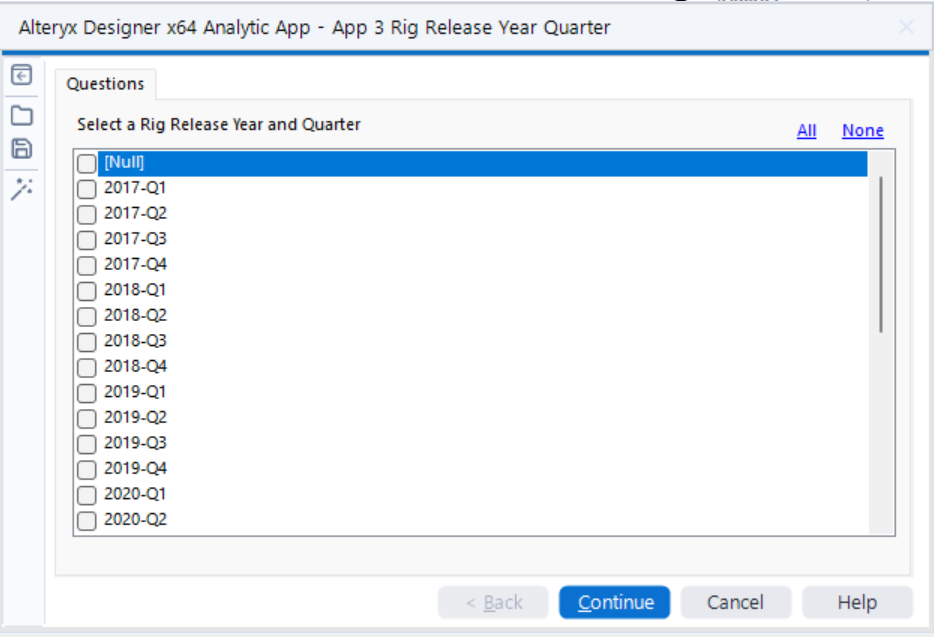

When running the wizard for app 3 on its own after manually running the first two apps without the wizard, the listbox populates just like before:

app 3 run manually.png

But when run as a chained app nothing populates in the listbox of app 3.

apathetichell

Edit your action tool to follow this instruction -

the correct configuration for filter tool is [field] IN("value1") - action tool replaces specific string "value1" - WITH QUOTES

your action tool is not configured correctly. As noted - this would create a situation where it runs correctly as a workflow - but not as an app. You want to replace the specific field you have in you IN('') statement including quotes.

livingja

app 2 action tool config.png

I'm genuinely confused on how this is this not what I'm doing. Please clarify how mine doesn't match up. I am confused how this isn't the specific part of the IN statement from the filter and in quotes "ROCKET" that I am replacing. How should it be done otherwise? Thanks for the help.

apathetichell

in the action tool - click on expression. make sure the replace string value didn't change. rerun. You have it set up to update the filter mode. that is not what you want.

livingja

Alright, thank you for the clarification. I have done that as shown, but still do not get my listbox to populate.

app 3 updated action tool.png app 3 blank question.png

Is there something else I'm missing, or that I didn't understand correctly?

apathetichell

Upload your .yxzp. this is a problem with your action tools/filter tools - I cannot diagnose it more then that with what you've provided. Also - crop your photos to show what you are actually sending in.

livingja

I made sure to refresh my connection path for the listbox as well as the interface designer run another app function and it suddenly started to work.

Thank you so much for all of your help. I really appreciate it.
