Assistance with the JOIN tool

Hi friends,

I have two simple excel files (unable to share due to confidential data) each with 700 (File 1 ) and 664 (File 2) records/rows. File 2 has two additional fields than File 1. Basically, I am trying to do a Vlook up from file 2 to pull those two fields into File 1. I am using the Join tool. When I Join by Record Position and Union the J and L output , the total output records count I am expecting is correct but some of the data positionings do not align correctly. However, when I use the Join by Specific Fields (both files have a common field), my J output itself is 20,297 records. I am wondering what is causing this increase when joining my specific fields. Any kind of ideas/help is so appreciated.

Thanks

Suman

Join

Accepted answers

Tyro_abc

Hi @itssumanb

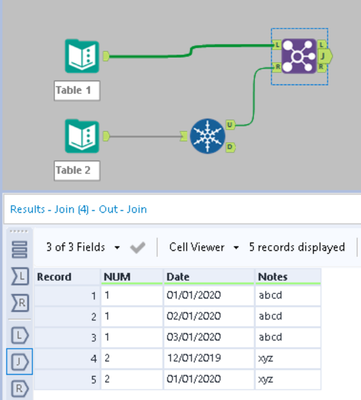

Check the attached workflow, most likely you want this. Please let us know otherwise.

Regards

Arundhuti

vlook_alternative.yxmd

All comments

BrandonB

This is because a traditional vlookup just finds the first instance of a match and then links up the corresponding data while a Join will return all matches found. The "duplicates" are just multiple rows matching from each data set. You will either want to dedupe your second dataset maybe using a unique tool, or you can use the Find Replace tool (also in the join category) as an alternative and use the option at the bottom to "Append Fields to Record" for the columns that you want. The Find Replace tool works more like your traditional definition of a vlookup in a situation like this.

Emil_Kos

Hi @itssumanb,

If I understand you correctly you are creating duplicates.

The file that you are using has duplicates on the fields that you are joining. Look at the example below if you would join those two columns together the final output would have more rows because the identifier isn't unique.

Identifier L First table	Identifier R Second table
1	1
1	1
1	2
2	2

Is that makes sense?

If this was helpful please mark my post as a solution!

Good luck!

itssumanb

Hi @Emil_Kos

You are right. My identifier isn't unique. So below is an example of what the table looks like and the end output I am looking for. Can you help?

Table 1

Num	Date
1	1/1/2020
1	2/1/2020
1	3/1/2020
2	12/1/2019
2	1/1/2020

Table 2 (the Notes is unique for each Num)

Num	Notes
1	abcd
1	abcd
2	xyz
2	xyz
2	xyz

Expected output table (everything from Table 1 with matching 'Notes' from Table 2)

Num	Date	Notes
1	1/1/2020	abcd
1	2/1/2020	abcd
1	3/1/2020	abcd
2	12/1/2019	xyz
2	1/1/2020	xyz
