Append results for Dynamic Input tool in batch Macro

Hi,

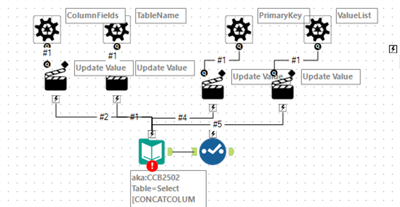

I have a Batch Macro that queries the oracle DB . The Query dynamically replaces Table names and Columns to retrieve.

I need to append the results of the query values each time the DB is queried and the result is retrieved.

But I am getting the error " Dynamic Input (3) The file "" has a different schema than the 1st file in the set."

So, I tried to write the Output to an Excel and set the option to "Append to Existing Sheet", the file is generated fine. Apart from writing to file and reading it back, is there a way that Batch macro can be made to output the appended results?

It is also to be noted that , as the number of columns vary for each table, I had passed in the parameter to the Batch that has all column names concatenated together and returned as 1 column.

Thanks,

Database Connection

Accepted answers

danilang

Hi @sdesabhatla

You can bypass the "has a different schema" error in the Interface designer of the macro.

Set the output mode to Auto Configure by name or position as required. You may also need to check "Output fields change based on macro's configuration" if this is relevant.

With these options set, the macro will union all the output data into one big table, so it will be up to the calling workflow to figure out which columns and rows come from which table

Dan

All comments

fmvizcaino

Hi @sdesabhatla ,

Would you be able to share some screenshots of your macro?

With your explanation, I'm not seeing where you would insert a dynamic input since you are doing everything in your input data tool.

Best,

Fernando V.

danilang

Hi @sdesabhatla

You can bypass the "has a different schema" error in the Interface designer of the macro.

Set the output mode to Auto Configure by name or position as required. You may also need to check "Output fields change based on macro's configuration" if this is relevant.

With these options set, the macro will union all the output data into one big table, so it will be up to the calling workflow to figure out which columns and rows come from which table

Dan

sdesabhatla

Thanks Dan !!. The interface designer configuration helped me achieve output result I was expecting.
