Adobe Analytics - Connector Toolkit

Hi, Alteryx Community!

I have been working for several months now on my very own edition of an Abode Analytics connector. I was very pleased to see the publication of the first iteration of Alteryx's connector with the release of 10.5. However, I thought I'd share the work that I've done for those that may still be seeking some additional options and/or capabilities from the Adobe Marketing Cloud API.

The toolkit can be downloaded and imported via the attached package (Adobe Analytics.yxzp). Upon importing, please review the README.txt file! It is very helpful in understanding not only how the toolkit is configured but more importantly understanding, at a high-level, how the API is architected and what its limitations are.

REQUIREMENT: Alteryx 10.1+ with predictive tools

RECOMMENDED: Install/import this package in your Macro folder

There are 2 configuration Applications that must be run prior to using the included download tool.

FIRST

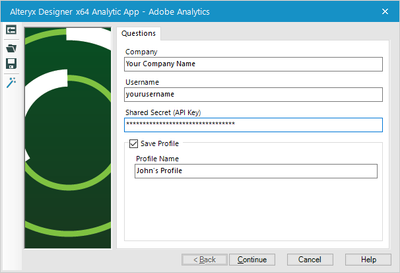

In the package folder, run the application 'Adobe Analytics' (as an app, of course). It prompts to load automatically upon importing this package. This application will authenticate your login credentials and, if successful, load a list of available Report Suites that can then be added to your available library.

SECOND

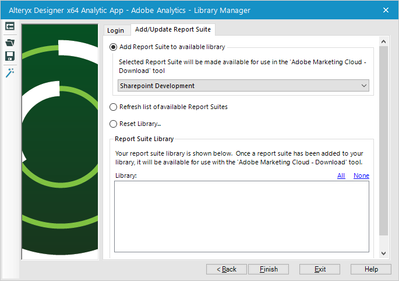

The aforementioned app should chain to a Library Manager app. This app loads metadata for a specific Report Suite into your available library.

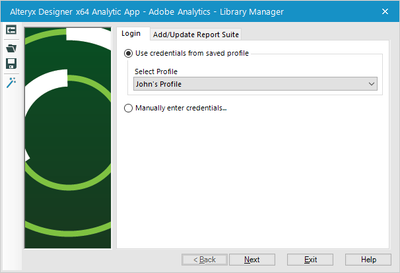

1. Either re-enter your login credentials or choose from a saved profile if you saved one from the prior app.
2. Select a Report Suite to load into your library.
3. Click finish.

After this runs, if you were to exit and re-open the application, you should see the available library in the list at the bottom of te second tab.
You can run this at any time to add additional Report Suites, reset your library, or refresh the list of available Report Suites.

FINALLY!

Now that configuration is complete, the Download Tool can go to work! Open the Adobe Analytics - Example workflow to get started!

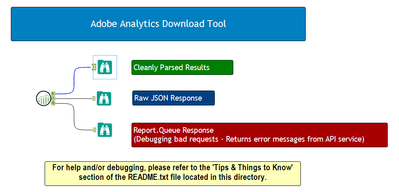

Sample Workflow...

Sample Flow.PNG

Configuration Window (4 tabs)...

I hope you all will find this to be very useful if you're looking to pull Adobe data into your Alteryx workflows. Please don't hesitate to post questions/concerns. Feedback is always welcome and I'm sure there is significant room for improvement. In the meantime, I'll be working on a second version that uses different authentication methods and won't be limited to developer connections (requiring API Shared Secret). However, if the need for this data is urgent enough, you should be able to ask your site admin for an API Shared Secret (API Key).

P.S. The Adobe Analytics - Download Tool can easily be converted into an Application! I've published one to our company's gallery to provide self-service capabilities to our gallery users!

Best Regards,

Taylor Cox

Adobe Analytics.yxzp

Connectors

API

Download

Accepted answers

dataMack

Excellent write up. I can't wait to try out your macro

jensroy

Fantastic tool, and much more convenient to use than the Adobe Connector tool (version 1.0.0.2).

First of all, more than 1 metric (up tp 5) is such a time saver. Now I only need 1 tool instead of 5 (pulling visits, unique visits, orders, revenue and cart additions) in one tool.

Also, since the data does not come in a wrongly transposed format where dimension 2 become column headlines, I can pull much more data (YTD instead of maximum 1 week). This makes it much more stable.

I would love to see an option for 3 elements. We run Test&Targets at our site where we run user experience tests. 1 test can have X versions, and each version may have an Order ID connected to it. Right now i need 2 tools to connect Order ID to the right version of a test.

An excellent tool! I hope you will continue to develop this!

All comments

dataMack

Excellent write up. I can't wait to try out your macro

jensroy

Fantastic tool, and much more convenient to use than the Adobe Connector tool (version 1.0.0.2).

First of all, more than 1 metric (up tp 5) is such a time saver. Now I only need 1 tool instead of 5 (pulling visits, unique visits, orders, revenue and cart additions) in one tool.

Also, since the data does not come in a wrongly transposed format where dimension 2 become column headlines, I can pull much more data (YTD instead of maximum 1 week). This makes it much more stable.

An excellent tool! I hope you will continue to develop this!

Coxta45

@jensroy,

I'm so glad you found this helpful! It has definitely been very useful for myself and our company. I am actually meeting with Alteryx today to discuss further development of this tool. I'll keep an update on this thread.

Taylor

dataMack

Taylor- I wanted to thank you again for building this - finally had a chance to install 10.6 and I first tested the stock Adobe Analytics app, and then yours. I really like the way your's stores the Report Suite info in a library, so future uses of the tool are greatly streamlined. Also very much appreciate the ability to download up to 5 metrics in a single shot - with the stock app I was having to copy and paste it over and over to get all the metrics I need. So for now, your tool will be my go-to for Adobe API downloads.

I hope the team from Alteryx can bring together the great features in your tool, with the flexibility of html-based forms that they used in theirs.

Coxta45

Jason,

First and foremost, I'm glad that you've found the tool to be useful. I worked on and off with this for a few months and finally reached a version that I felt was worthy of publication. I've actually received excellent feedback from a few others that have tried it out and also found it to be a timesaver. Secondly, I've also had the opportunity to meet with members of the Alteryx Product Development team a couple of times now to discuss this tool and Adobe Analytics in general. It is my understanding that a new version of their tool should be in the making and will combine the HTML/Javascript elegance from their original version with the functional capabilities from my version. Time will tell, I guess!

Regards,

Taylor

lshiffman

Hi Taylor,

Do you know if there is a way to get around the 50,000 record limit? I'm trying to pull data that has over 200K records, but it seems that I can't return more than 50,000 records due to the Primary Element Record Limit on the Segments/Elements tab of the Adobe connector. Do you know any way to pull more records?

Thanks!

Coxta45

Ishiffman,

Unfortunately, this is a painful limitation set by the Adobe Marketing Cloud API. There is a workaround, however. You can pull your data using "pagination" and union the sets once you have the full results. In the Segments/Elements tab, when you have the "Include Elements" radio selected, you'll see a section labeled "Primary Element Record Limits" that allows you to specify "Top" (up to 50,000) and "Starting With".

So for 200k records, you'll need 4 instances of the tool to accomplish this. The first pulls top 50,000 starting with 1, the second pulls top 50,000 starting with 50,001, etc... Then union the results, sorry it's not easier.

Regards,

Taylor

apolly

Hi Alteryx Community,

First, thank you to @Coxta45, Taylor, for your work on the Adobe tool you’ve shared via Alteryx Gallery.

Secondly, we are developing a new Adobe Analytics connector. It will not be part of Alteryx Designer 11.0, because it will be released via Gallery for anyone to download. It will be released around the same timeframe as 11.0 (Q1 2017) so you should have the same expectations. The updated connector will have functionality introduced by Taylor and will be a much improved tool.

Thank you.

Coxta45

Alex,

Thanks! This is great news, looking forward to the news releases!!

Christopher11

Hello Coxta45

Thank you so much for sharing this, it works and is very useful, yet i am wondering if you can reply how the actual API call looks like? I know it depends on whatever you choose as setting, but just the foundation of it? I am having trouble to figure this one out. I have a client who request which API query i am using, and obviously wants to reply.

Thank you in advance :-)

/Christopher

Coxta45

Christopher11,

Glad you're finding the tool useful. Adobe has an API Explorer that I found extremely useful when I was developing this. Once you log in with your Omniturecredentials, you'll be able t create sample calls, etc. and view the required headers and JSON arrays for your calls. Here is super brief run down of a typical report queue:

Queue a report
1. Endpoint: https://api.omniture.com/admin/1.4/rest/?method=Report.Queue
2. Headers: UsernameToken Username="username:Company", PasswordDigest="B8l+e2QeXCtg9rGeqXX6myypKdk=", Nonce="ZGNkOGEwMDMtOTc0Ny01YzYxLTRmMzktNDg2MzRhMGU5NTRj", Created="2016-12-19T15:19:23+00:00"
  1. Note: this set of headers would only work ONE time, as you'll need to create a unique hashed Nonce for each call.
3. Sample Call Body: {"reportDescription":
  {"reportSuiteID":"bcbsncbcbsnc",
  "dateFrom":"2016-12-19",
  "dateTo":"2016-12-19",
  "dateGranularity":"day",
  "metrics":[
  {"id":"uniquevisitors"},
  {"id":"visits"},
  {"id":"pageviews"}
  ],
  "elements":[
  {"id":"mobiledevicetype",
  "classification":"",
  "top":"10",
  "startingWith":"1"}
  ],
  "segments":[
  {"id":"537d2a5be4b0748a2cab1599"}
  ],
  "currentData":"0"
  }
  }
4. Response: {"reportID":0123456789}
At this point you'll take that report ID and begin asking for the report
1. Endpoint:
2. Headers: Same as above with new Nonce/Timestamp etc.
3. Call Body: {
  "reportID":"0123456789"
  }
4. Response: The response here will either yield the results or tell you that report has not finished running.
5. Parse The Results:
  1. Results will look similar to this:

{
"report":{
"type":"trended",
"elements":[
{
"id":"mobiledevicetype",
"name":"Device Type"
}
],
"reportSuite":{
"id":"reportsuite",
"name":"Report Suite Name"
},
"period":"Mon. 19 Dec. 2016",
"metrics":[
{
"id":"pageviews",
"name":"Page Views",
"type":"number",
"decimals":0,
"latency":1883,
"current":false
},
{
"id":"uniquevisitors",
"name":"Unique Visitors",
"type":"number",
"decimals":0,
"latency":1883,
"current":false
},
{
"id":"visits",
"name":"Visits",
"type":"number",
"decimals":0,
"latency":1883,
"current":false
}
],
"segments":[
{
"id":"537d2a5be4b0748a2cab1599",
"name":"A Cool Segment"
}
],
"data":[
{
"name":"Mon. 19 Dec. 2016",
"year":2016,
"month":12,
"day":19,
"breakdown":[
{
"name":"Other",
"url":"",
"counts":[
"29464",
"2665",
"2772"
]
},
{
"name":"Mobile Phone",
"url":"",
"counts":[
"4327",
"482",
"512"
]
},
{
"name":"Tablet",
"url":"",
"counts":[
"1544",
"159",
"163"
]
},
{
"name":"Media Player",
"url":"",
"counts":[
"30",
"1",
"2"
]
}
],
"breakdownTotal":[
"35365",
"3307",
"3449"
]
}
],
"totals":[
"35365",
"3307",
"3449"
],
"version":"1.4.16.10"
},
"waitSeconds":0,
"runSeconds":0
}

Hope this is helpful. I'd encourage you to use the API Explorer, it will be most helpful.

Coxta45

Christopher11

Thanks, I'm glad you're finding the tool useful. Adobe has a great API Explorer that found to be extremely using while developing this connector. Here is a brief rundown of how retrieving reports works the API:

API is RESTful, using POST methods..

Queue a report...
- Endpoint: https://api.omniture.com/admin/1.4/rest/?method=Report.Queue
- Headers: UsernameToken Username="username:CompanyName", PasswordDigest="j/G93u+bdc5iDhm0NDNUbiZWfBE=", Nonce="ZTNhYWExMTUtYWU1Yy1iZDcyLTVmODctMjEwMzljNTYxMmI0", Created="2016-12-19T16:00:50+00:00"
  - Note: You'll need to create your own hashed, unique, Nonces, Timestamps and PasswordDigests (HMAC SHA1)
- Sample Call Body:{"reportDescription":
  {"reportSuiteID":"yourreportsuite",
  "dateFrom":"2016-12-19",
  "dateTo":"2016-12-19",
  "dateGranularity":"day",
  "metrics":[
  {"id":"uniquevisitors"},
  {"id":"visits"},
  {"id":"pageviews"}
  ],
  "elements":[
  {"id":"yourelementid",
  "classification":"",
  "top":"10",
  "startingWith":"1"}
  ],
  "segments":[
  {"id":"yoursegmentid"}
  ],
  "currentData":"0"
  }
  }
- Reponse: {"reportID":"0123456789"}
Given the reportID, make the call to retrieve the report.
1. Endpoint: https://api.omniture.com/admin/1.4/rest/?method=Report.Queue
2. Headers: Same as above, new Nonce, Timestamp
3. Call Body:
  - {"reportID":"0123456789"}
4. Response will either yield results or a message saying it's not finished running..
5. PARSE AWAY!!!

I hope this is helpful, but please check out the API Explorer as well as the API documentation on Adobe's website.

Taylor

N-Dru

Thanks for the connector! Is there an option to change preset date selector "last week" to range from Monday until Sunday? I tried setting up a custom date range in Adobe Analytics but it doesn't shop up in the selector.
