Azure Active Directory SAML setup

[jarrod_wall]

This post should be used in conjunction with https://help.alteryx.com/auto-insights/single-sign-sso

If your organization uses Azure Active Directory then it is possible to configure SSO Authentication for Auto Insights.

The following steps show the Azure configuration that is required.

• Login to Azure at https://portal.azure.com

• Navigate to Azure Active Directory: https://portal.azure.com/#blade/Microsoft_AAD_IAM/ActiveDirectoryMenuBlade/Overview

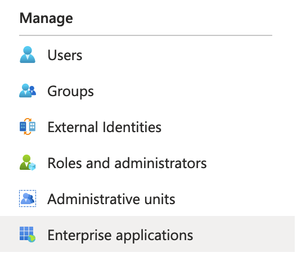

• Click on Enterprise Applications

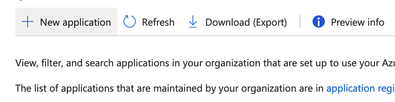

• Click on + New Application

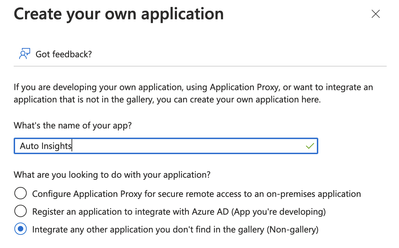

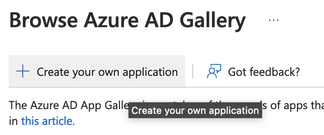

• Click on Create your own application

• Give the integration a name, for example “Auto Insights”
• Click on Non-gallery application

• Click on Create

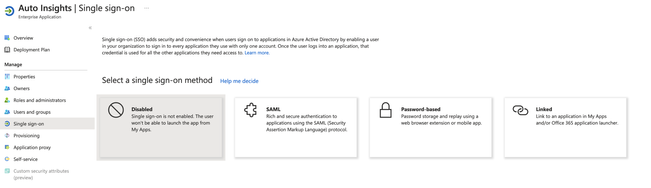

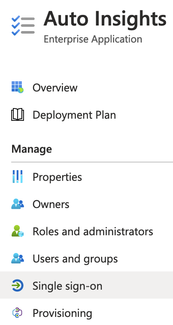

• Click Single sign-on

• Click SAML

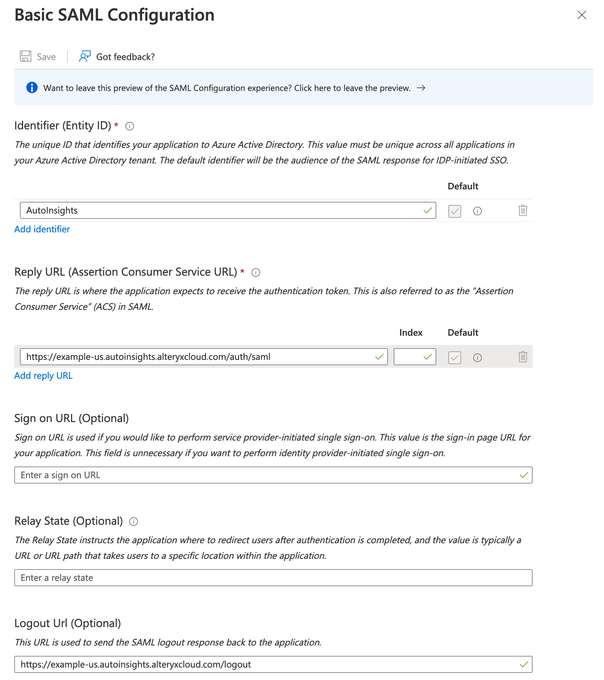

Set the following configuration properties :

• Identifier:  AutoInsights
• Reply URL: https://<your custom URL>/userservice/auth/saml
• Relay State: <leave empty>
• Logout URL: https://<your  custom URL>/userservice/logout

Optionally:

• Sign on URL: https://<your custom URL>/userservice/auth/saml

Please let the Auto Insights team know if you configure Identifier to a different value

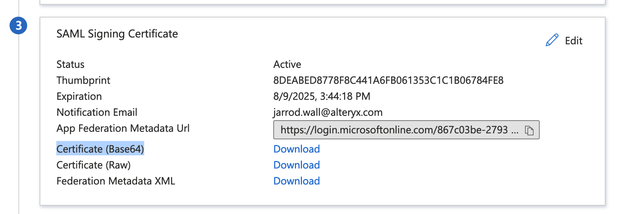

• Download Certificate (Base64)

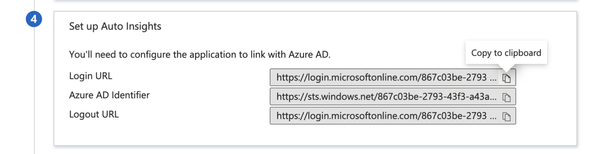

• Provide the following to the Auto Insights Team:

• Identifier
• Certificate (Base64)
• Login URL

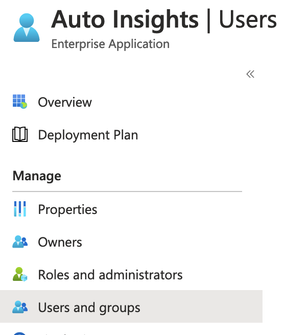

If you get the following error message when testing login then you may need to add users/groups to the Auto Insights application:
