Web Scrapping - Cannot find URL

ibesmond

Hello,

Looking for some help finding the full (or maybe absolute) URL's to do some web scrapping.

Here is the basic URL link

https://apps.web.maine.gov/cgi-bin/online/bablo/licensing/search_large

I referenced Web Scrapping - Unchanged URL

but cannot find what I should be looking for in the developer tools. I ran a blank search and then went to Network tab but I don't see what I should be looking for. The other post mentioned: ?searchstring, but I don't see that.

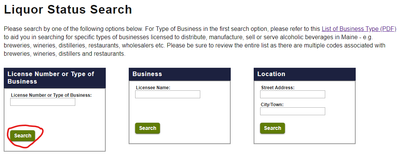

Maine Web Search.png

Specifically I am interested in "BRW, DIS, SMB, SMD" so it could be 4 different URLs or leave the field blank and I can filter the data later. I would prefer to filter on the front end however.

Once I run the search I am trying to pull data from two levels down.

This is the first level: I want to select the link that brings me to the business name information.

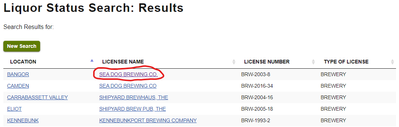

Maine Web Search level 1.png

Here is the second level and the fields I am trying to pull data for.

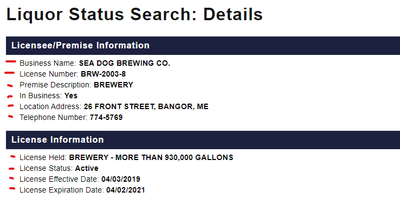

Maine Web Search level 2.png

I do get a URL for the individual business pages Sea Dog Brewing Co. but there is no way to predict the URL especially if you don't know the Company name.

Any help and would be great. I've been on Alteryx for about a week now, so I do not know much about web scrapping/API yet.

API

Accepted answers

fmvizcaino

Hi @ibesmond ,

I got carried away and developed everything you need, I think 🙂

I'm attaching a solution where I've commented all the way to help you understand what is happening each step of the workflow.

I've used a lot of things here and I'm going to share some links to help you understand the steps.

First, I needed to check how the search button works and I've used HTTP Trace extension from Google to simulate it.

From here, I know that it is a POST method with license_number and submit as payload.

After getting to the next page, I've inspected the HTML code to see if I was able to see how to get to the next page with all the informations. Luckily, it was possible.

From that, I needed to create an automatic form of getting all the license name links and I've used regex to do it.

How to: https://community.alteryx.com/t5/Alteryx-Knowledge-Base/Tool-Mastery-RegEx/ta-p/37689

Test Regex expressions: https://regex101.com/

After that, I've inspected one more time the HTML source code and was able to identify all information from the company.

Regex all the way once again to separate all the patterns identified.

Best,

Fernando Vizcaino

2020-04-06 Web Scrapping - Cannot find URL.yxmd

All comments

fmvizcaino

Hi @ibesmond ,

I got carried away and developed everything you need, I think 🙂

I'm attaching a solution where I've commented all the way to help you understand what is happening each step of the workflow.

I've used a lot of things here and I'm going to share some links to help you understand the steps.

First, I needed to check how the search button works and I've used HTTP Trace extension from Google to simulate it.

From here, I know that it is a POST method with license_number and submit as payload.

After getting to the next page, I've inspected the HTML code to see if I was able to see how to get to the next page with all the informations. Luckily, it was possible.

From that, I needed to create an automatic form of getting all the license name links and I've used regex to do it.

How to: https://community.alteryx.com/t5/Alteryx-Knowledge-Base/Tool-Mastery-RegEx/ta-p/37689

Test Regex expressions: https://regex101.com/

After that, I've inspected one more time the HTML source code and was able to identify all information from the company.

Regex all the way once again to separate all the patterns identified.

Best,

Fernando Vizcaino

2020-04-06 Web Scrapping - Cannot find URL.yxmd

ibesmond

Hi @fmvizcaino Thank you so much. Quadruple thumbs up from me and all those that will benefit from your solution. This will serve as a complete training guide.

One question I wanted to ask. You set up the input to filter for BRW? In your opinion, would you suggest I duplicate this entire workflow for each license type, or would you create multiple rows in the text input tools as shown below? When I run the workflow as shown, I get 724 results which contains quadrupled duplicates. Manually the searches return 181 total: (BRW-13, DIS-1 (NULL), SMB-139 & SMD-28)

Maine input combined.png

I'm not sure what is causing the duplicates. Do you know how to fix this? Or would you recommend a better way to union the data, and at what point in the workflow could the data be joined? You have already given me so much. If I could just ask this last challenge; I truly appreciate it. Thanks Fernando.
