PostgreSQL Geometry field imported as string

Question

I posted a similar question regarding the dynamic input tool but after testing different approaches, I'm facing the same issue with the input tool.

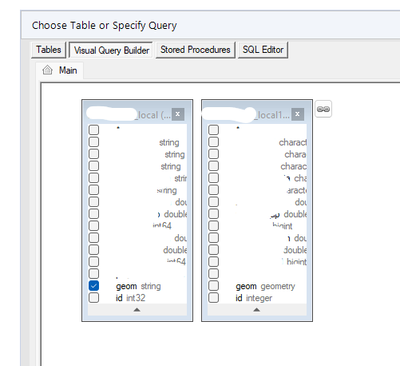

Please let me know if anyone faced the same issue with Postgres queries. Initially, when I import a table, geom column type is geometry but if I close the input tool and reopen it, geom column switches to string. Is this a bug or input tool need some configuration?

rewaza · Answer

The character limitation issue is solved by increasing the limit of Max LongVarChar in the ODBC admin panel.
I set it to 999999

rewaza · Answer

Yes, I tried ANSI, Unicode, and Unicode(x64). I read the documentation before posting. It says "You can use either the ANSI 32-bit driver or the Unicode® ODBC driver. If using the ODBC connection for spatial data, use the Unicode® ODBC driver"
I remember, I had this issue only with dynamic input and the ordinary input tool worked well but now I have with both tools.

PhilipL · Answer

@rewaza Have you tried a different ODBC driver? From our documentation, it looks like the there is more than one available (although only one is "officially" supported).

https://help.alteryx.com/20221/designer/postgresql

When working with Alteryx and SQL Server, I have seen differences in Spatial column behavior depending on the ODBC driver I'm using. For example with SQL Server, the Native Client is more forgiving.
