[HTML] How to add table borders in text tool - eml format

Morning all.

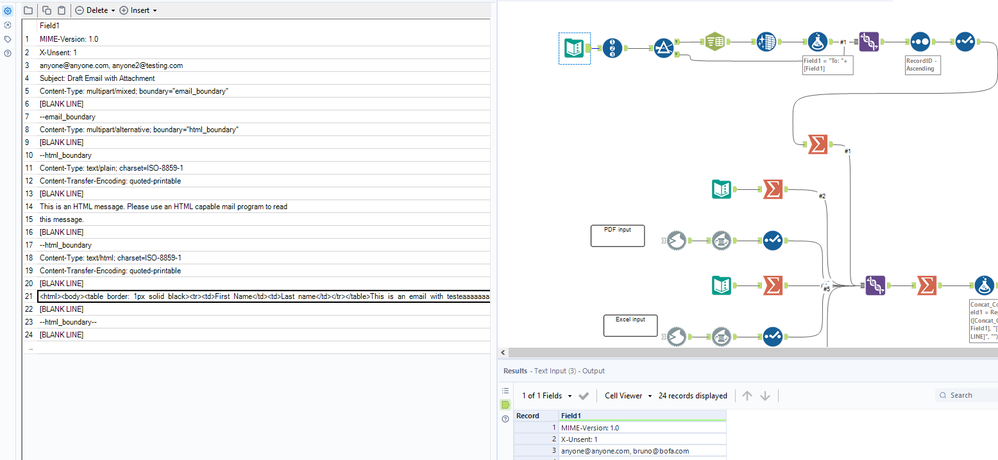

I have a workflow that creates a email draft with attachments. It also creates the body of an email, however I am trying to create a table with borders using html commands. The problem is, the table is created but the borders dont show up.

I was hoping someone here in the community to know html and help me out with this doubt. I would be great to fix this.

Its line 21 in text tool!

Thank you very much!

Create Draft Email with Attachments_ HTML BUG.yxmd

Workflow

Developer

Help

Accepted answers

Amol_Telore

Hey @Joker_Hazard

I have modified your HTML code with CSS and now HTML code shows table borders. Please note that it is best practice to use <th></th> syntax for table headers and <td></td> syntax for columns. Hope this is what your looking for and solves your concern.

<html>
<head>
<style>
table, th, td {border: 2px solid BLACK ;border-collapse: collapse;}
</style>
</head>
<body>

<table><tr><th>First Name</th><th>Last name</th></tr></table>This is an email with test <b>attachments</b>

</body>
</html>

I was under impression that you are facing issues with HTML code. Let me know if you have any questions with regards to workflow.

All comments

Amol_Telore

Hey @Joker_Hazard

<html>
<head>
<style>
table, th, td {border: 2px solid BLACK ;border-collapse: collapse;}
</style>
</head>
<body>

<table><tr><th>First Name</th><th>Last name</th></tr></table>This is an email with test <b>attachments</b>

</body>
</html>

I was under impression that you are facing issues with HTML code. Let me know if you have any questions with regards to workflow.

Joker_Hazard

This is absolutely incredible! Thank you very much @Amol_Telore

Excuse my extra questions, however I need some opinions from an expert.

How can I add background colours? And, How to have same width on the cells to be more visual?

thanks!!!

Amol_Telore

@Joker_Hazard I am not sure if i get your question completely. But if you were asking about increasing the width of cell, I have added width property. You can modify property as per your need.

Regarding first question, background-color property is used to add coloring in table. Below is updated code.

<html>
<head>
<style>
table, th, td {
border: 2px solid BLACK ;
border-collapse: collapse;
background-color:lightblue;
width:400px}
</style>
</head>
<body>

<table><tr><th>First Name</th><th>Last name</th></tr></table>This is an email with test <b>attachments</b>

</body>
</html>

HugoT

Hi @Amol_Telore,

Thanks for your excellent solution, but my specific data disappears in Email table. Could kindly check what's wrong in my case, thanks.

The letter after equal sign & before another sign disappears with following sign, I believe that code is "AB=Z</td>" and then transferred by "AB=/td>". Please find an example in attach.

Thanks a lot if you can advise some solution.

HTML Problem.PNG

Amol_Telore

Hey @HugoT

Hope you are doing well.

Will you able to create a sample workflow and replicate the issue? This will help me to understand what you are trying to achieve and your issue in more detail. Thanks!

Also, I am on business visit from tomorrow so please expect a little delay in response.

Regards,

Amol Telore
