Unable to find the Configuration File error

Question

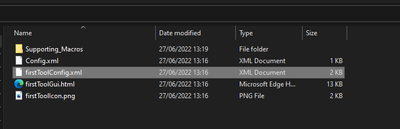

I created a tool using the alteryx-tool-generator which was recommended in the docs Engine and HTML GUI SDKs | Alteryx Help . this generated this file structure:

I didn't change any of the files I just ziped the file and changed the extension to .yxi.

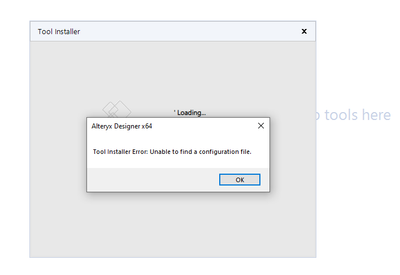

When I try to run the file I get this error in Designer:

Not sure why it cant find the configuration. I've attached the zip file.

tlarsen7572 · Accepted Answer

Everything except Config.xml needs to be in a folder. The folder should be the name of the tool. Your file structure should look something like this:

YXI's are designed this way because a single YXI can install multiple tools. Config.xml is the config for the overall YXI file. Each tool in the package gets its own folder and its own files.

tlarsen7572 · Accepted Answer

Typically, the root config file will be sparser. I tend to just copy my tool config and use it as the root config, but that's because of laziness.

If you are getting the same error, my guess would be that the folder structure is still not correct.

How are you generating the zip file?

You need to be careful that Config.xml and the tool folder are in the root of the zip file. When I generate the zip file, I select Config.xml and the tool folder, right-click, and select 'Send To'->'Compressed (zipped) folder'.
