Running Powershell script in Designer

Question

Hi everyone,

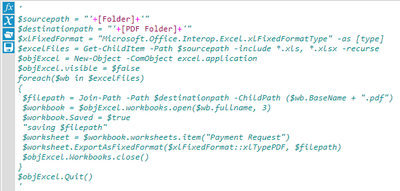

I have a workflow that clones and fills in Excel templates with requests for another department. Said department takes PDFs, so I mashed together a Powershell script that converts the Excel files in a specified folder into PDFs:

The script works as intended when run manually outside of Alteryx, but I need this to run automatically within my workflow.

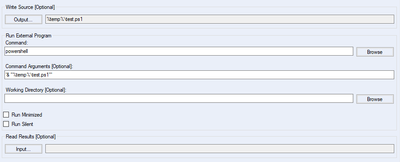

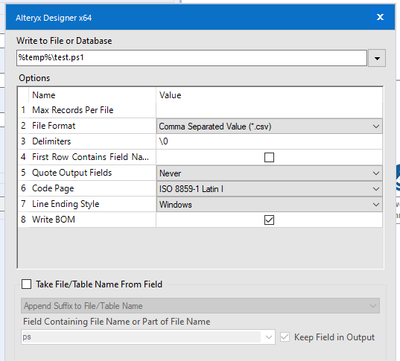

This is my current configuration:

Depending on how I fiddle with the configuration, I have gotten everything from a blank Powershell window to error code 1.

Any help would be greatly appreciated, I'm stumped!

davidskaife · Answer

Hi @psubramanian

The short answer is yes via the Run Command Tool, but it depends on how your Server/Gallery is set up to run. More info here under Default Run Mode - https://help.alteryx.com/20221/server/gallery

and details on the tools that are blocked depending on the Run Mode - https://help.alteryx.com/20221/server/safe-and-semi-safe-run-modes-blocked-tools-events-and-data-connectors

psubramanian · Answer

Can we run a PowerShell script that makes modifications to an Excel workbook on Alteryx Gallery/Server?

MatthewK · Answer

Hi Fernando,

Tracking down the ps1 file Alteryx generated ended up being the clue I needed, thank you!

When I found & ran it, I realized Alteryx was not opening and running the generated script; specifying the working directory allowed the powershell script to run as expected. In this case, my workflow lives in a local Test folder.

Interestingly, I have a non-admin install, but am able to run command prompt and powershell scripts. Huh.
