Null Values After Join then Union

Hi,

Having an issue after a join then a union. After the join there are records that fall out an records that join with data i require. I am unioning back in data that I know will have partial null fields (which I will then cleanse to denote). The union works, creating the amount of rows I am expecting, but all the data that was previously populated is now null.

Any ideas on why I am having this issue would be useful!

-All fields are ticked in the join and are passing through

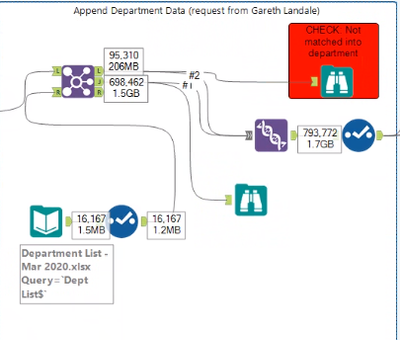

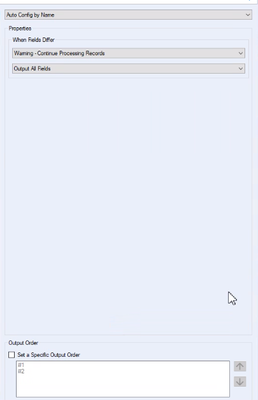

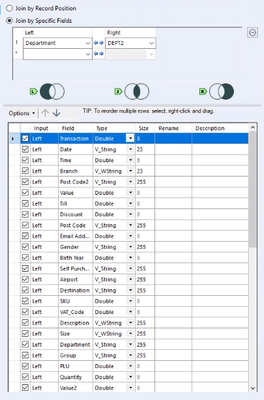

-I have attached a screengrab of the configuration of both tools

Thanks,

LDP616

Datasets

Help

Join

Accepted answers

AndrewS

Hi @LDP616

I think you need to remove the NULL values and then change the join fields - I've attached a reconfigured workflow - you will need to drop the files onto it as it's not packaged.

TEST_reconfig.yxmd

All comments

TrevorS

Hello @LDP616

Thanks for posting to the Community!
Are you able to include your workflow and some sample data so that we can see what's going on?

Thanks!
TrevorS

pedrodrfaria

Hi @LDP616

It will be a lot easier if you could share the workflow.

If I understood it correctly, when you are adding the union afterwards you need to pay attention because then you will have duplicate columns and then many rows/columns being null. My recommendation, prior to the union, add a select and properly name all the columns so you do not have an instance where a column is renamed by Alteryx due to being the same name as other (ex: Right_Column1) and unselect any possible duplicate columns. After doing this with the select tools, you can union everything by name and should have a clean dataset.

This happens because The L output and the J output will have the same columns, with the J output also having some columns from the R output, this is why they get duplicated and we would need to do this.

Pedro.

LDP616

Thanks guys, appreciate it!

Module attached!

TEST.yxzp

Madsss

Hi All,

I am facing the similar issue where my data in the SELECT tool is coming properly but when I combine it to the Union tool with other inputs, my values get converted into NULL.

I also checked the names, types etc everything is same to my other inputs getting combined to Union tool. please help
