Parse Error at char(1): Unknown variable "My variable".... but variable exists?

KikiMartin

Hello,

I'm trying to create a formula with a previously calculated variable. (PeakAccel & AveAccel)

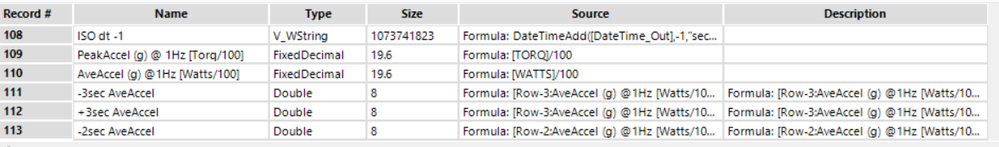

Capture 1.PNG

But, when I try to use these variables in a formula downstream....

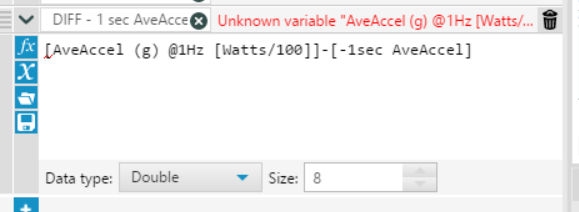

Capture 2.PNG

...though it appears in variable list:

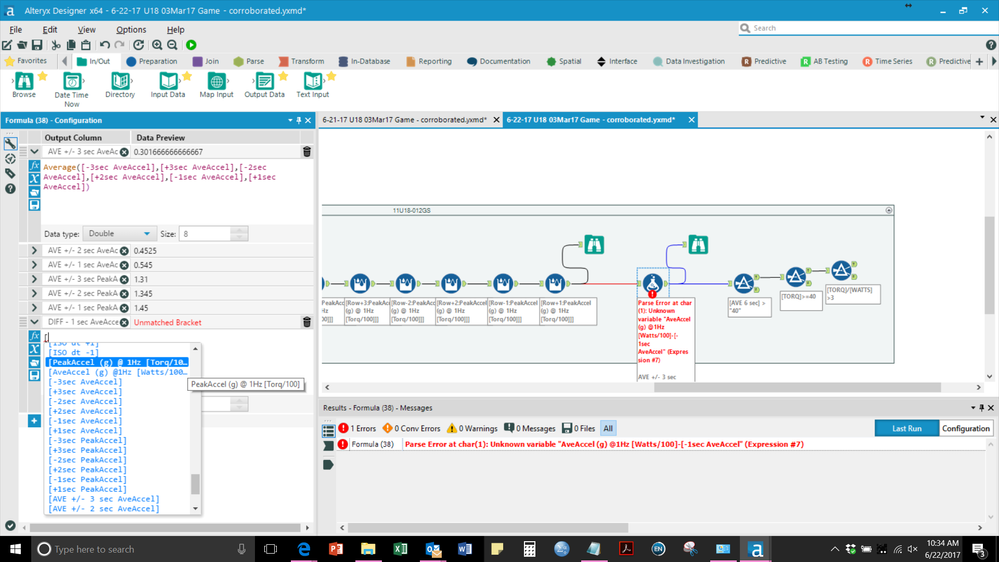

Capture 3.png

I am perplexed. Why isn't the variable recognized in the formula tool?

Thank you for the help,

(I'm a novice user, eager to improve).

Kiki

Transformation

Accepted answers

DanS

Not 100% without seeing your whole workflow, but it could be that it hadn't picked up the new column at that point in the workflow yet.

F5'ing your workflow should update the downstream newly created columns.

Thanks,

Dan

All comments

NicoleJohnson

I believe it's an issue with the square brackets you have contained in your field name. If you change the field name to AveAccel (g) @1Hz (Watts/10) instead, with parentheses instead of square brackets, it should work.

DanS

Looks like the brackets might be causing a problem in your headers. Try adding another one in the formula.

Ex.

"...[Watts/100]]]..."

That should work.

KikiMartin

THANK YOU!

The additional square bracket worked!

(But for my understanding, why? It seems like it would be an unmatched bracket).
