Not able to Upload both File and Data using HTTP Post function in Download Tool

RohitChopra

Hi All,

I am trying to configure a download tool using HTTP Action: Post to upload the file along with other Text Data. This includes 1 Key having File and 4 other keys having text data. I have tried various workarounds from past two three days and initially i was getting Multipart errors such as:

- fileupload.FileUploadException: the request was rejected because no multipart boundary was found","path":"/upload"}

- ":"Internal Server Error","exception":"org.springframework.web.multipart.MultipartException","message":"Current request is not a multipart request","path":"/upload"}

But then these got resolved with Boudary: webkitxxxxxxxxxxx

After all of the multiple attempts i am now stuck with new error from 2 more days i.e. ,"status":400,"error":"Bad Request","exception":"org.springframework.web.multipart.support.MissingServletRequestPartException","message":"Required request part 'file' is not present","path":"/upload"

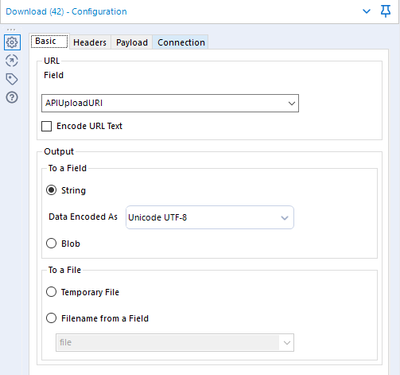

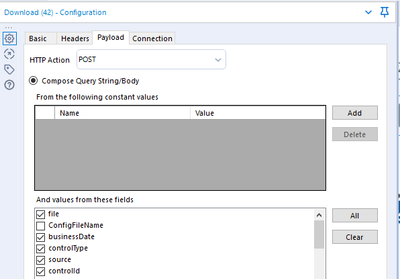

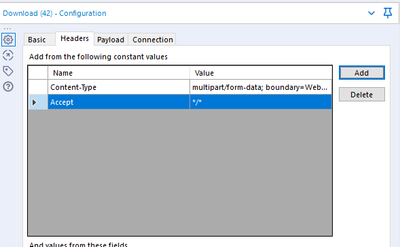

I am sharing below the most recent screenshots for the download configuration where i am taking the data from a Text input Tool i have given the Path of the csv file along with the field file and rest is the plain text. the path of the file is from Network share which is posted in the field as \\network\folder\location\filename.csv

I alongside the Alteryx I am also trying to send the same file through POSTMAN for testing and I am getting success results in POSTMAN for which the screenshot is enclosed below:

Can someone assist with the HTTP POST Action guidance having combination of Text and File and from the Community

I am only able to find out a Post command with BLOB tool https://help.alteryx.com/current/developer-help/configuration-file-upload-workflow but this also did not worked for me.

@FadiB @TashaA i have also found some of your solutions but that are mostly relation to PUT Action or FTP acition

Kind Regards,

Rohit

RohitChopra

Hi Brandon,

I have tried exploring on the Postman Code also which helped me to resolve other errors like content-type, Multipart Boundaries etc.

However post resolving these errors i am stuck on 400 Bad Request. I am sharing the curl Command for your reference:

curl --location --request POST 'http://path:0000/upload' \

--form 'file=@///FilePath/folder/filename.csv' \

--form 'businessDate=20200915' \

--form 'controlId=abc' \

--form 'controlType=xyz' \

--form 'source=aaa'

Another twist is I also used the Python Request command from Code Section of Postman in the Alteryx Python Tool and that ran successfully:

Python-Request (taken from Postman):-

import requests

url = "http://path:0000/upload"

payload = {'businessDate': '20200915',

'controlId': 'abc',

'controlType': 'xyz',

'source': 'aaa'}

files = [

  ('file', open('///FilePath/folder/filename.csv','rb'))

]

headers= {}

response = requests.request("POST", url, headers=headers, data = payload, files = files)

print(response.text.encode('utf8'))

I feel like there i am missing something to Post FormData+File at once through the download tool. if there would have been no file involved then it would have been a success for me.
