Error in read.Alteryx when converting PDF to Excel

organicchocolate

Hi community,

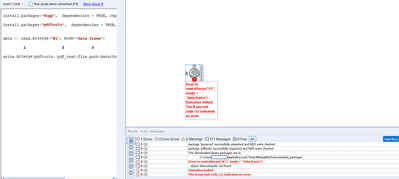

I am having trouble below with an error in read.Alteryx, after following the instructions below the photo for converting PDF to Excel. Any tips? Thank you in advance!

install.packages("Rcpp",  dependencies = TRUE, repos = "http://cran.us.r-project.org")

install.packages("pdftools",  dependencies = TRUE, repos = "http://cran.us.r-project.org")

Note: The Rcpp package is a dependency and is not necessary but I use it to prevent issues that occur with other R GUI's.

Now define your data input (The FilePath to your pdf found using the directory tool)

data <- read.Alteryx("#1", mode="data.frame")

Finally change the format of your data:

         1                2            3           4          5  $    6            7

write.Alteryx(pdftools::pdf_text(file.path(data$FullPath)), 1)

Breakdown of the code:

1 & 7 = Alteryx specific R code that defines the output

2 = calls the package we will be using

3 = the command that will convert the pdf to text

4 = used to reformat the cell in our data frame as a file path

5 = the data frame we defined earlier

$ = print

6 = the field name of the cell from the directory tool

There it is a very simple solution that allows us to convert pdf to a usable format with in Alteryx.

ImadZidan

Hello @organicchocolate ,

First, you need an input for the RTool. So, this would be an input.

Second, if you have different file names and different paths, this can become useful.

Example:

File1 - resides in directory1 and has a name file1

File2 - resides in directory2 and has a name file2

So you would loop through the data frame and do the conversion for each pdf.

I would say, initially start with one file and hardcode the path to as in the workflow. Once happy implement the loop logic.

Fields main objective is to store the file configuration. All your conversion will happen after you have read the pdf and converted to text.

If you provide a pdf and let us know what you are after, together we will work it out.

To be comprehensive, I am assuming you don't want to use the two PDF Tools available.

One requires a license and one doesn't. to have a look at them, type in the search PDF.

I hope this helps.
