Macro: Decide Process based on Input

Hello Community!

First Porst.

Im strugling with macros right now.

Im Building a Field validator based on Formulas and RegEx.

Every field has its own set of conditions for the fields to be valid and return 1 if valid and 0 if invalid.

This already work by itself but I need to validate 2 times during my workflow so I´m trying to make it a Macro.

The main problem is that I want to do it so the macro use one Formula tool for validating "Source1" and another Formula for Validating "Source2"

SORCE1 Columns

SOURCE2 Columns

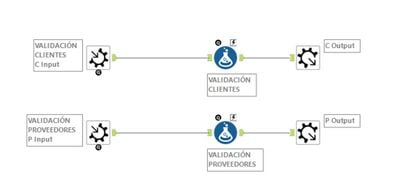

So since the sources are diferrent and the validations are different, right now I have something like this.

I would like to make it so that, when Source1 is disconected it validates Source2 only.

And if Source2 is disconected it validates Source1 throught formula1.

I tried using a detour tool and actions, conditions and other tools.

I tried making (Optional) my 2 inputs but formulas will throw an error cause fields inside won't be recognized.

What would be the optimal solution fot this? Any ideas?

Developer Tools

Input

Regex

Output

Custom Tools

Macros

Best Practices

Apps

Batch Macro

Preparation

Accepted answers

CharlieS

Sorry for the delay, @jda996 I've been on vacation since my last post.

I put together the attached example that shows that the macro should not validate formulas/tools that are in the detour path not taken. Maybe there's an error elsewhere in your macro? Looking at the error, what tool is ToolID 17?

20190826-FieldAgnosticMacro.yxzp

All comments

CharlieS

It sounds like you need to build this with only one Macro Input and one Macro Output. Be sure to de-select the field map on the Macro Input tool. Beyond that, I would use a pair of Detour tools controlled by a checkbox on the macro so you can control Formula 1 or 2 when you place it in a workflow.

Or have you already tried this with Detour tools?

jda996

Hi!

Thanks for the quick reply.

Okay I´ve done as you suggested, but I have the following question.

How do you manage the fact that the 2 inputs expect different fields

And the 2 Formulas expect a certain Format.

In this Build the Input has nodata in the "Text Input" and Show Field Map has been turned off.

If I "Edit data" to recieve the fields for data set 1, the other Formula would tell me is missing Fields:

I've tried making (Optional) the fields with "SORTL (Optional)" but Formulas still throw map error.

Thanks in advance!
