ERROR - Invalid document structure

AndrewCrayford

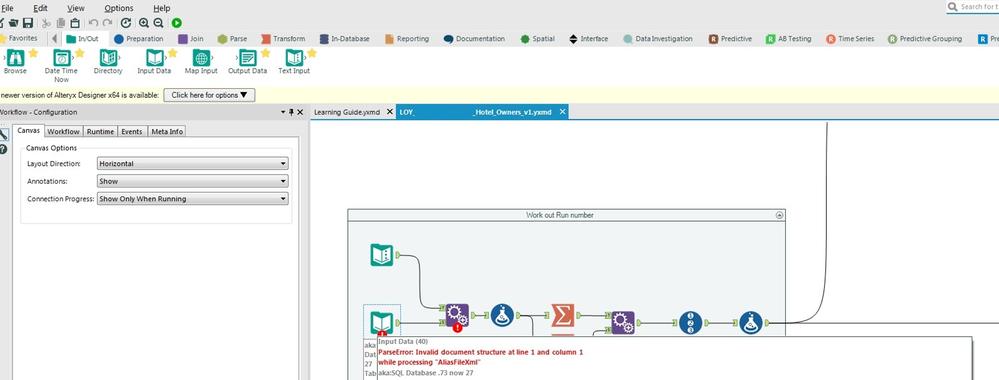

I create a workflow yesterday, it ran and save successfully, however today when I open it it displaying the following error message.

issue 1.jpg

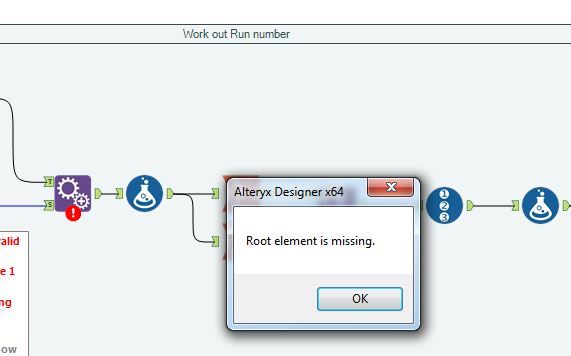

As soon as i try to open the icon that is given me an error message, i get another message

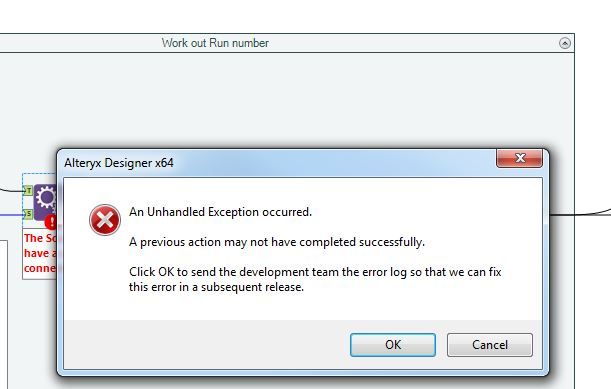

When i click on ok, it comes up with the following message

Just wondering how i can fix this issue as it also effecting some workflow which I have saved months ago.

Settings

Error Message

Bugs & Issues

Accepted answers

PaulN

Hi @AndrewCrayford,

Thank you for posting!

Does the input data tool use a Gallery alias? If so, please rename file %APPDATA%\Alteryx\Engine\GalleryAlias.xml to GalleryAlias.xml (example: C:\Users\my_name\AppData\Roaming\Alteryx\Engine\GalleryAlias.xml.old) and restart Alteryx Designer.

Kind regards,

Paul Noirel

Sr Customer Support Engineer, Alteryx

dhouse

One additional point: This can also happen on Gallery if you remove the last gallery alias. The gallery file may be left in an invalid XML format, causing the workers referencing that file to fail with this error.

All comments

PaulN

Hi @AndrewCrayford,

Thank you for posting!

Kind regards,

Paul Noirel

Sr Customer Support Engineer, Alteryx

AndrewCrayford

Thanks that worked

dhouse

bir1bv

I'm getting the same error for a dynamic input tool in my macro. My input files are of type xml. I created a blank file with type xml and dynamically replace the file with the actual xml file name. This worked perfectly the first few times I ran the workflow but suddenly stopped working and produced the errror:Invalid document structure at LIne:2 and Column:1. How do I get rid of this error?
