Batch macro - multiple filters / control parameters

mis994

Hi,

Relatively new to alteryx and need some help to resolve this urgently. I have large dataset in a single sheet that I will need to split into smaller files using 4 different filters (in columns). I have created a batch macro that worked with the first filter - which pulled out all the data based on the location code. For some of these locations, I will need to apply another filter for the cost center. Questions below:

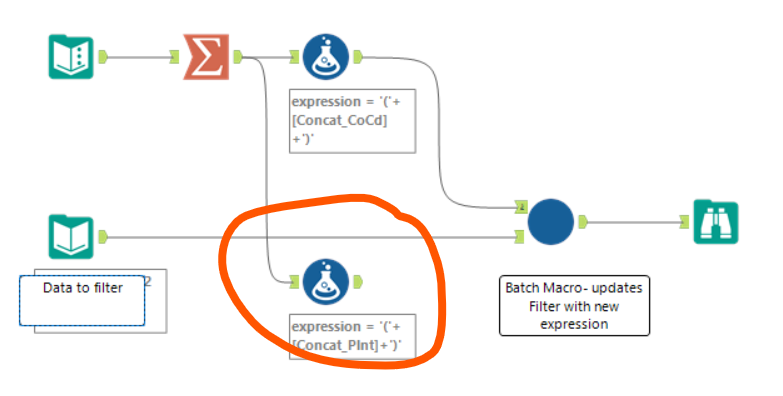

1. Is the macro workflow below for the second filter correct? How do I go about applying a formula to skip this step if the input field is blank?

2. In the main workflow, how do I change the expression for both control parameters in the in Text input list to include both columns to flow into the macro?

Please any help on the above is greatly appreciated!

Thank you

OTrieger

@mis994
When you have multiple Control Parameter you will need to ensure that all the data for these parameters is available. When clicking on the macro you will need to Questions, and then you can set each Control Parameter. Select the first field for the first parameter and etc. So that is how you can set all your fields as parameters for the macro.

In the 2nd Filter Tool you can use a Custom and then write a conditional formula or add several conditions to fit your need.

You can connect the Control Parameter directly to a Q and not need to use Action Tool, it makes it easer as you will need only to select that input, nevertheless using Action Tool is totally fine.
