Download Tool, Can't Replicate Same Results

hellyars

I want to use the Download Tool to replicate a USASpending.gov search.  I know the results work.  I am pointed to the correct endpoint and using the same JSON as the successful query, but I can't get it to work in Alteryx.  Suspect, I do not have the Download Tool setup correctly.  Thoughts?

Thanks...

See below, workflow also attached.

This is what I am trying to replicate the POST request used to generate these results.  Link to results.

If you Inspect Network and Request you will see the following...

The API is

api.usaspending.gov

The Endpoint is

/api/v2/search/spending_by_award/

The JSON Request:

{"filters":{"keywords":["W56HZV"],"time_period":[{"start_date":"2021-10-01","end_date":"2022-09-30"}],"award_type_codes":["A","B","C","D"]},"fields":["Award ID","Recipient Name","Start Date","End Date","Award Amount","Description","def_codes","COVID-19 Obligations","COVID-19 Outlays","Infrastructure Obligations","Infrastructure Outlays","Awarding Agency","Awarding Sub Agency","Contract Award Type","recipient_id","prime_award_recipient_id"],"page":1,"limit":60,"sort":"Award Amount","order":"desc","subawards":false}

From Inspect Network double clicking the endpoint will generate and show the JSON results (which duplicates the results first reference above under link).

But I can't seem to get it to work using the Download tool.

I see two errors:  1) HTTP 1.1 422 Unpronounceable Entity and 2) {"detail":"Missing value: 'fields' is a required field"}

Workflow attached:

ToCommunity_DownloadTool_USASpendAPI.yxzp

ArnaldoSandoval

Hi @hellyars

Your workflow was almost working, I found 2 or 3 glitches.

Glitches:

• The URL in your Text Input failed to work with the working stream you will find in the attached workflow; I copied the URL from my testing tool, Postman.



• Your download tool's parameter "Content-Type" should be without the double quotes, the same with its value:

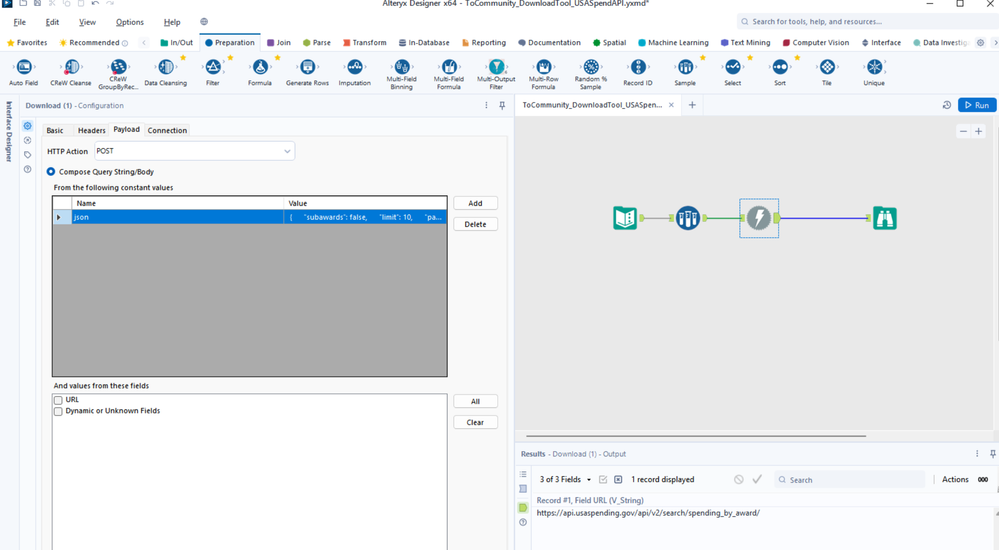

• Your download tool's Payload configuration is not correct; you created a parameter "json" which confused the whole process; you should use the bottom option "Use Following Query String/Body"

The Body of the request here is in JSon, but do not paster pretty formatted JSon, just the whole JSon string.

Suggestions:

• The USA Spending API page documentation is a bit complicated or unfriendly, it took me a while to figure out the command to use in the script.
• Please watch this video: API's in Alteryx ; it is a 25 minutes demo implementing API calls in Alteryx.
• The video above direct you to Postman which is a great tool to test API calls before coding them into Alteryx; I used this tool when playing with the USA Spending APIs.

Attached the working solution:

Hope this helps,

Arnaldo

ToCommunity_DownloadTool_USASpendAPI-working.yxmd
